During the running miners, PSU usually refuses to work due to various reasons. The below information would help you to choose the correct power supply (PSU) for your Bitmain antminers.
| Model | Input Voltage （V） | No. of PSU connectors（PCS） | APW3series | APW5 | APW7 | APW8 | APW9 |
| S9 | 11.6~13.0 | 10 | √ | √ | √ | ||
| S9i | 11.6~13.0 | 10 | √ | √ | √ | ||
| S9j | 11.6~13.0 | 10 | √ | √ | √ | ||
| S9 hydro | 11.6~13.0 | 13 | √ | ||||
| S9k | 11.6~13.0 | 10 | √ | √ | √ | ||
| S9 SE | 11.6~13.0 | 10 | √ | √ | √ | ||
| S11 | PSU attached | 10 | √ | ||||
| S15 | PSU attached | 2 | √ | ||||
| S17 Pro | PSU attached | 1 | √ | ||||
| S17 | PSU attached | 1 | √ | ||||
| T9 | 11.6~13.0 | 10 | √ | √ | √ | ||
| T9+ | 11.6~13.0 | 10 | √ | √ | √ | ||
| T15 | PSU attached | 2 | √ | ||||
| T17 | PSU attached | 1 | √ | ||||
| V9 | 11.6~13.0 | 10 | √ | √ | √ | ||
| Z9mini | 11.6~13.0 | 4 | √ | √ | √ | ||
| Z9 | 11.6~13.0 | 7 | √ | √ | √ | ||
| A3 | 11.6~13.0 | 10 | √ | √ | √ | ||
| B3 | 11.6~13.0 | 7 | √ | √ | √ | ||
| D3 | 11.6~13.0 | 10 | √ | √ | √ | ||
| D5 | PSU attached | 10 | √ | ||||
| DR3 | 11.6~13.0 | 10 | √ | √ | √ | ||
| DR5 | PSU attached | 10 | √ | ||||
| E3 | 11.6~13.0 | 7 | √ | √ | √ | ||
| L3 | 11.6~13.0 | 5 | √ | √ | √ | ||
| L3+ | 11.6~13.0 | 9 | √ | √ | √ | ||
| L3++ | 11.6~13.0 | 9 | √ | √ | √ | ||
| X3 | 11.6~13.0 | 10 | √ | √ | √ | ||
| B7 | 11.6~13.0 | 7 | √ | √ | √ | ||
| Z11 | 11.6~13.0 | 10 | √ | √ | √ | ||
| Z11j | 11.6~13.0 | 10 | √ | √ | √ | ||
| Z11e | 11.6~13.0 | 10 | √ | √ | √ | ||
| R4 | 11.6~13.0 | 7 | √ | √ | √ |
For APW8, please read more as below:
| PSU Model | # of output voltage |
| APW8 for DR5 | 8V-9.2V |
| APW8 for S15/T15 | 16.32V-20.04V |
| APW8 for S11 /D5 | 10V-11V |
Check the labels on the PSU case and find the model type:

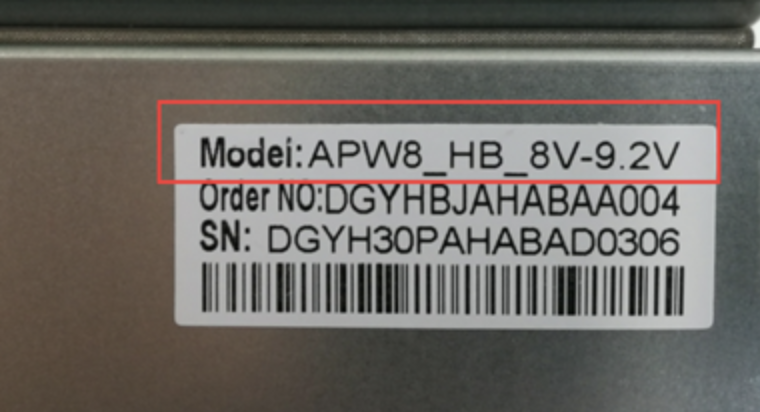

APW8 for DR5

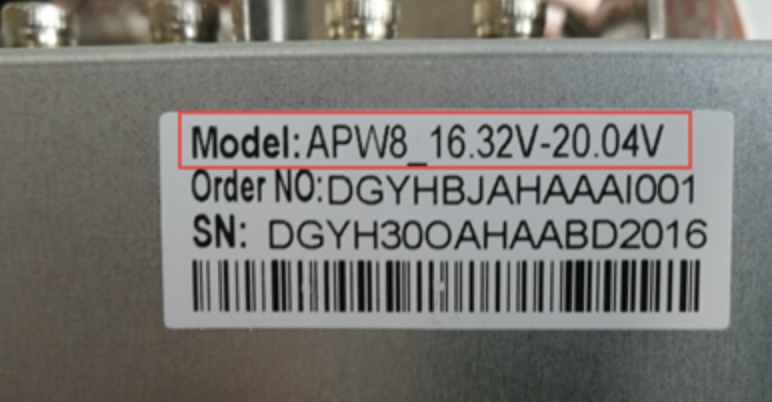

APW8 for S15/T15

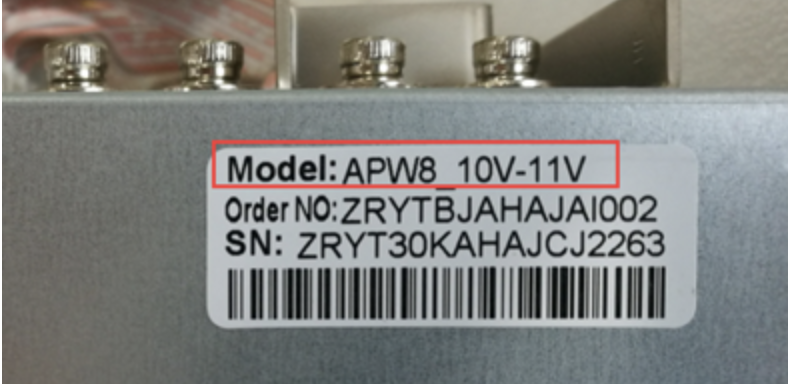

APW8 for S11 /D5
